Automated Spin Coater with Reader
Integrated sample preparation · TRUST syphilis & rheumatoid factor testing
Principle Animation
Sample loading · Coating · Reading
Key Features
All-in-one: sample loading, spin coating, horizontal rotation, and result reading — integrated into a single compact unit.
| Integration | Loading · Coating · Rotation · Reading |
| Width | 530 mm (ultra‑narrow) |
| Throughput | 12‑well test plate × 3 plates per run |
| Accuracy | Reagent: ±5% · Sample: ±5% |
| Reagent specs | Neg/Pos control 1 mL (Ø20mm) · Antigen 2.5 mL (Ø20mm) · Diluent 5 mL (Ø18mm) |
| Tube spec | 5 mL, recommended blood ≥3 mL |
| Human interface | Touchscreen display |
| Calibration | On‑screen guided calibration |
| Waste container | Stainless steel, autoclavable |
Specifications
Detailed technical data for the automated spin coater with integrated reader.
| Time per plate (qualitative) | ≈ 4′ (excluding shaking incubation) |
| Throughput | 12‑well test plate × 3 plates / run |
| Accuracy | Reagent: ±5% · Sample: ±5% |
| Reagent containers | Neg/Pos control 1 mL (Ø20mm) · Antigen 2.5 mL (Ø20mm) · Diluent 5 mL (Ø18mm) |
| Sample tube | 5 mL, recommended blood ≥3 mL |
| Human interface | Touchscreen display |
| Position calibration | On‑screen guided calibration |
| Waste bin | Stainless steel, autoclavable |
Clinical Field Test
Real‑world hospital deployment
Clinical Application
Tested in multiple clinical institutions across China. The system demonstrates consistent performance in hospital laboratories for TRUST syphilis and rheumatoid factor testing.

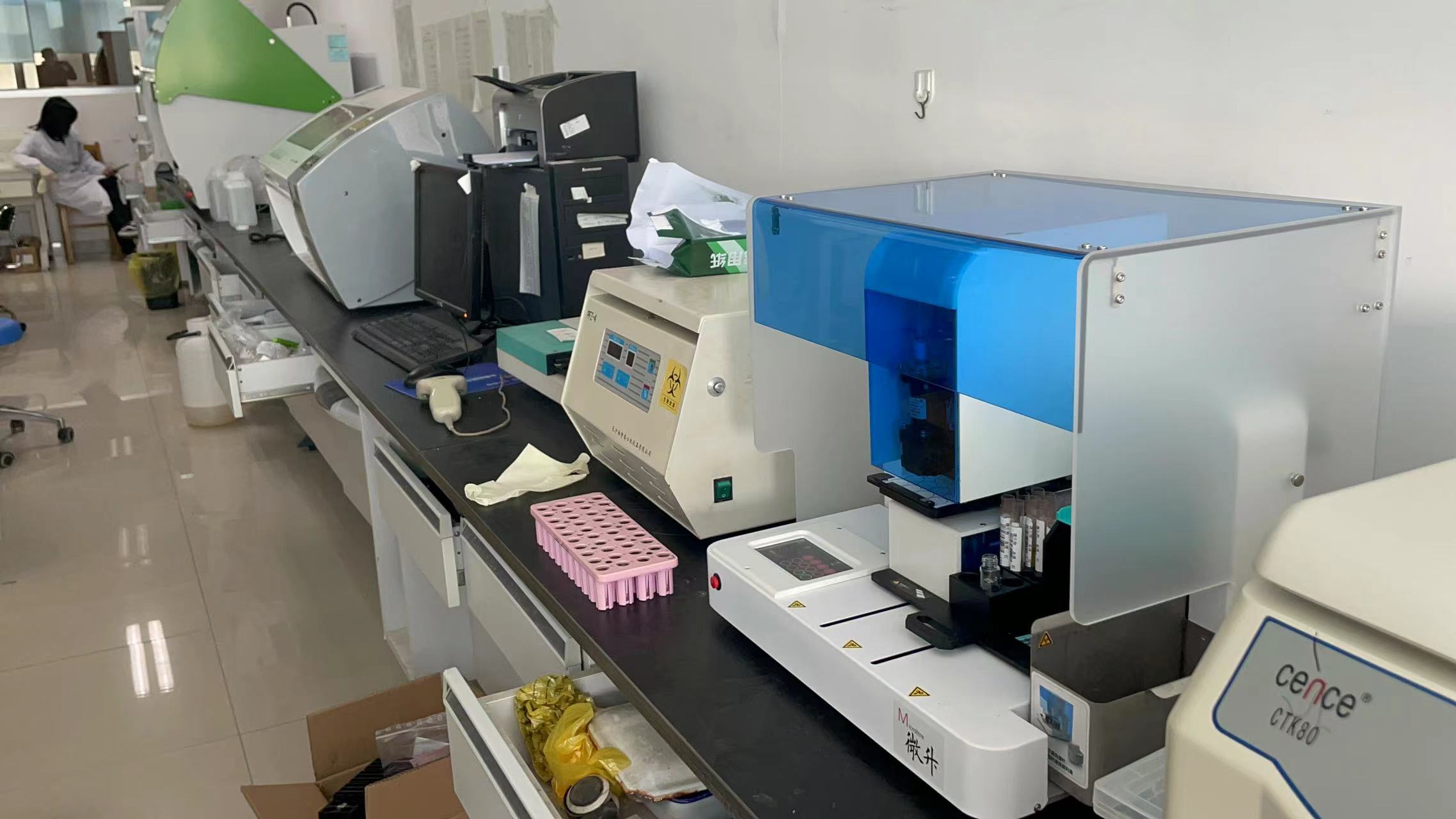

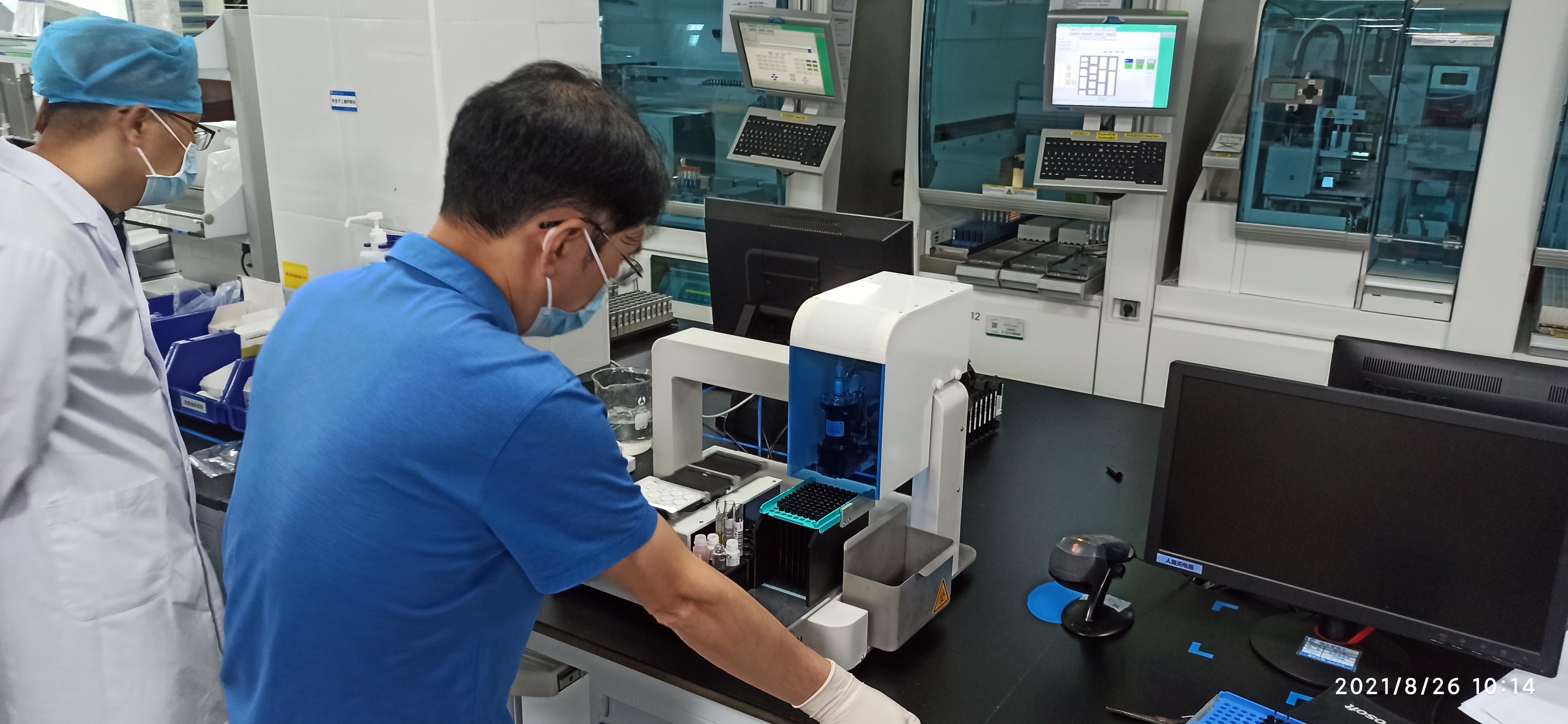

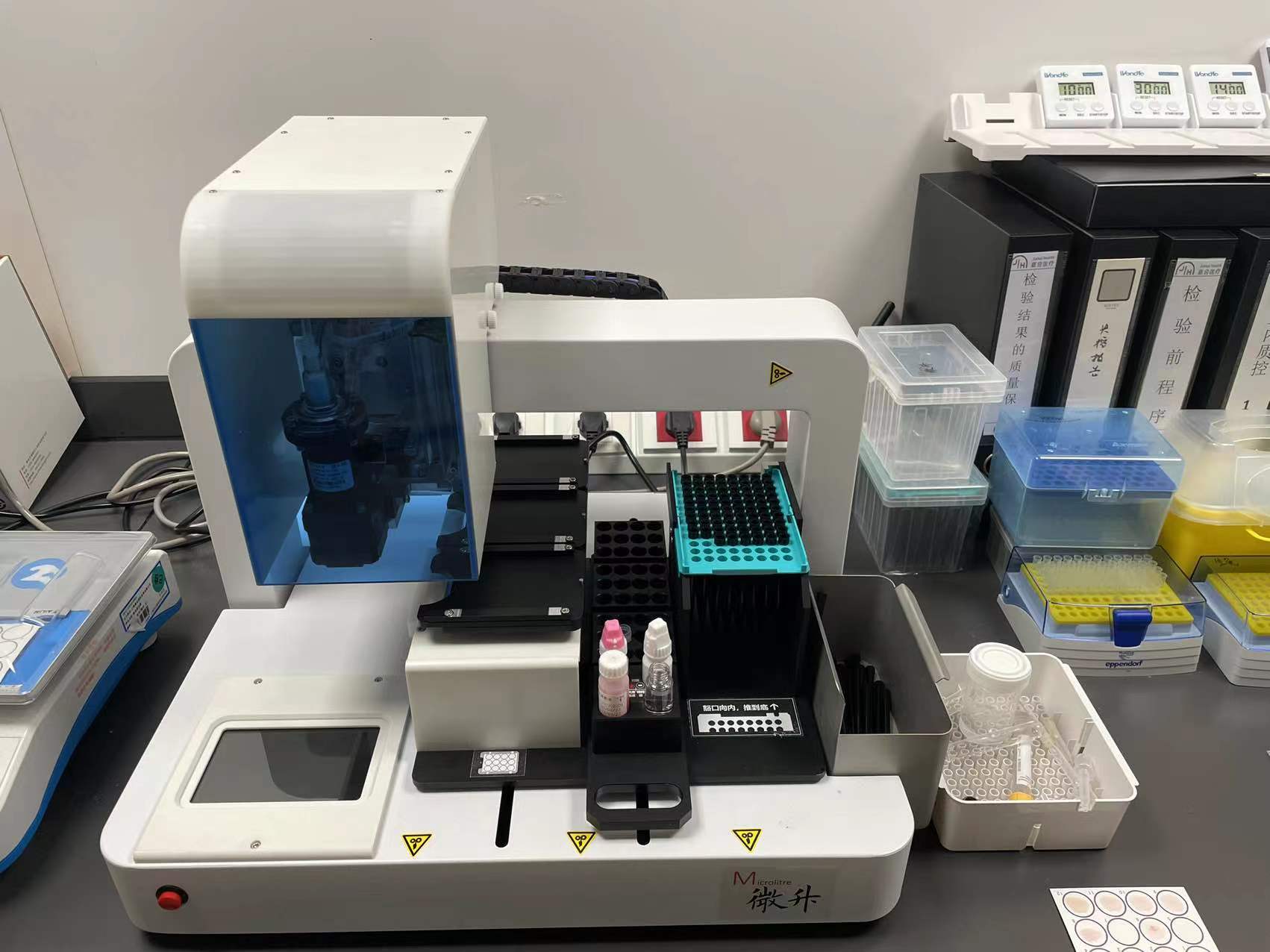

Hospital deployment photos:
※ In‑house trials · continuous improvement
